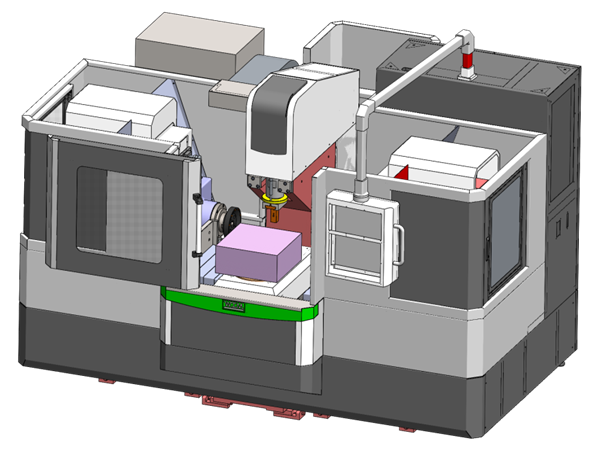

DPM 430, DPM 650

Inquiry
SHARE TO :

Advantages

Ø Simple and user-friendly
Ø The whole machine is assembled in one piece
Ø Moveable hydraulic device, flexible for crane travelling
Ø Detachable spindle, ensuring machining accuracy
Ø The degree of finish can reach 0.59μm
Ø High-efficiency & cost-effective



Specifications

  • Parameter
  • Diagram
  • Floor Plan

  Model  Unit  DPM430 DPM650
 Travel X axis travelmm
750
900
 Y axis travel mm
310455
 Z axis travelmm
310455
 Distance between two spindle nosemm
140-760140-1050
 Spindle center to worktable top mm
125150
 Max. machining material (L x W)mm
430 x 430650 x 650
 Max. cutting thickness mm
190240
 Min. machining material (L x W x H)mm
 20 x 20 x 10 / 7 x 7 x 7 (Optional)20 x 20 x 10
 Spindle Spindle bore taper  -
Ø 47.625Ø 47.625
 Spindle speed rpm
 70-100070-1000
 Worktable Max. worktable loading capacityton
0.30.7
 Worktable dimension mm
Ø 340500x500
 Minimum indexing angle -
90°90°
 Power Spindle motorkW
11/15 (30min)11/15 (30min)
 X axis servo motorN.m
2020
 Y axis servo motorN.m1111
 Z axis servo motorN.m1111
 Total power requirement kW
3535
 Rapid traverse rate (X、Y、Z axis)m/min
1010
 Max. diameter of cutter -
Ø 200
Ø 250
 Size & Weight Floor space require (L x W x H)mm
3200 x 2700 x 24003700 x 3070 x 2600
 Machine weightton7
10
CNC system  FANUC 0i-MFFANUC 0i-MF

Design & specifications are subject to change without prior notice!


 ModelUnitDPM430DPM650
Size & Weight
 Floor space require (Length x Width)
mm 3200 x 2700
3700 x 3070
 Machine height
mm24002600
 Machine weight
ton710



Accessories

  • Standard Accessories
  • Optional Accessories

DPM430DPM650
 FANUC 0i-MF system
 Manual handle feed unit
 Air cooler for electric cabinet
 Screw type chip conveyor
 Chiller, only for DPM1510/DPM1810
 Pneumatic system
 Lubricating system
 Full guard
 Service tools and tool box
 Leveling screws and leveling wedges
 Cycle indicator lamp
 L & R Cutters

 Design & specifications are subject to change without prior notice!

Optional accessoriesDPM430
DPM650
 Min. indexing angle 45°

 Servo rotary table


 Design & specifications are subject to change without prior notice!
