DHD S series

Inquiry
SHARE TO :

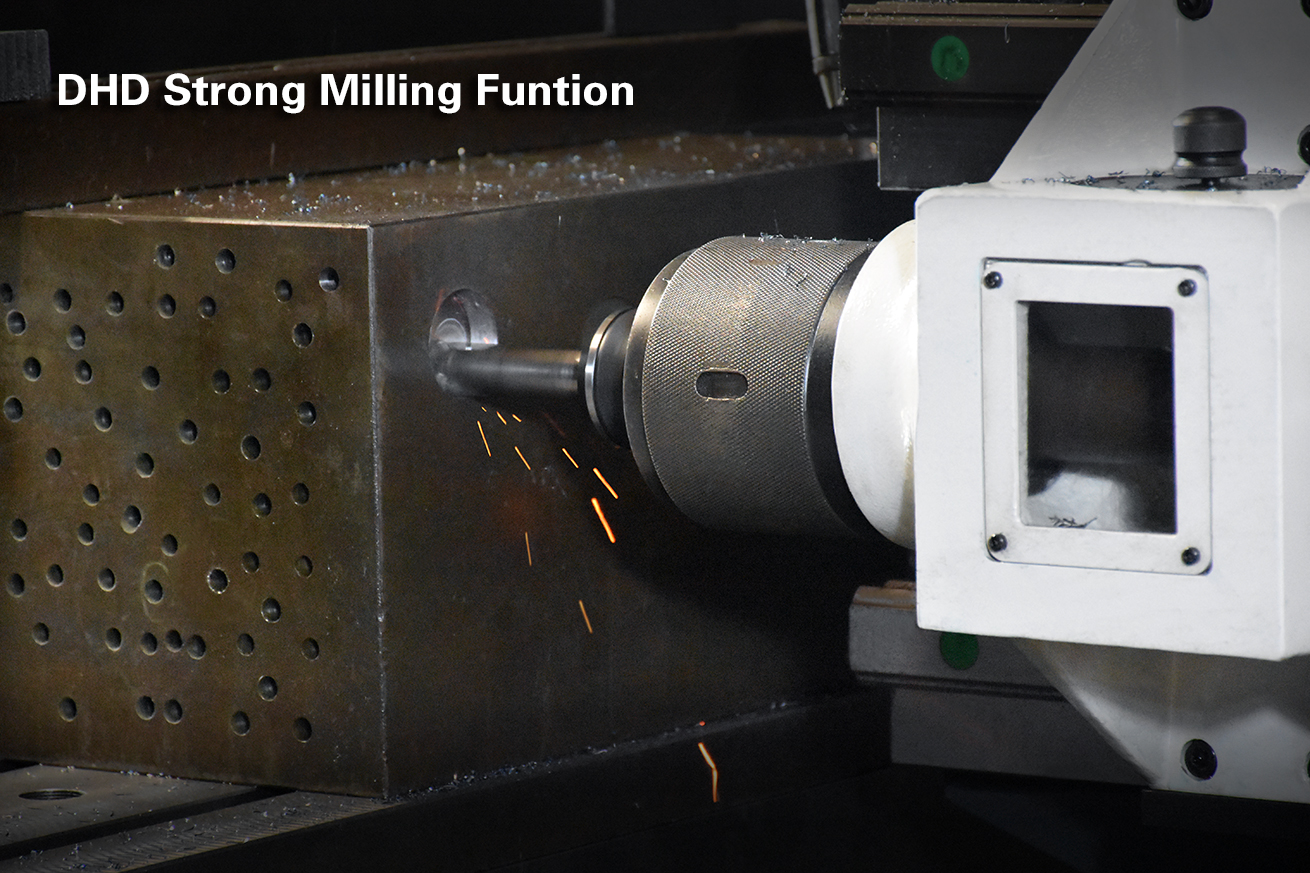

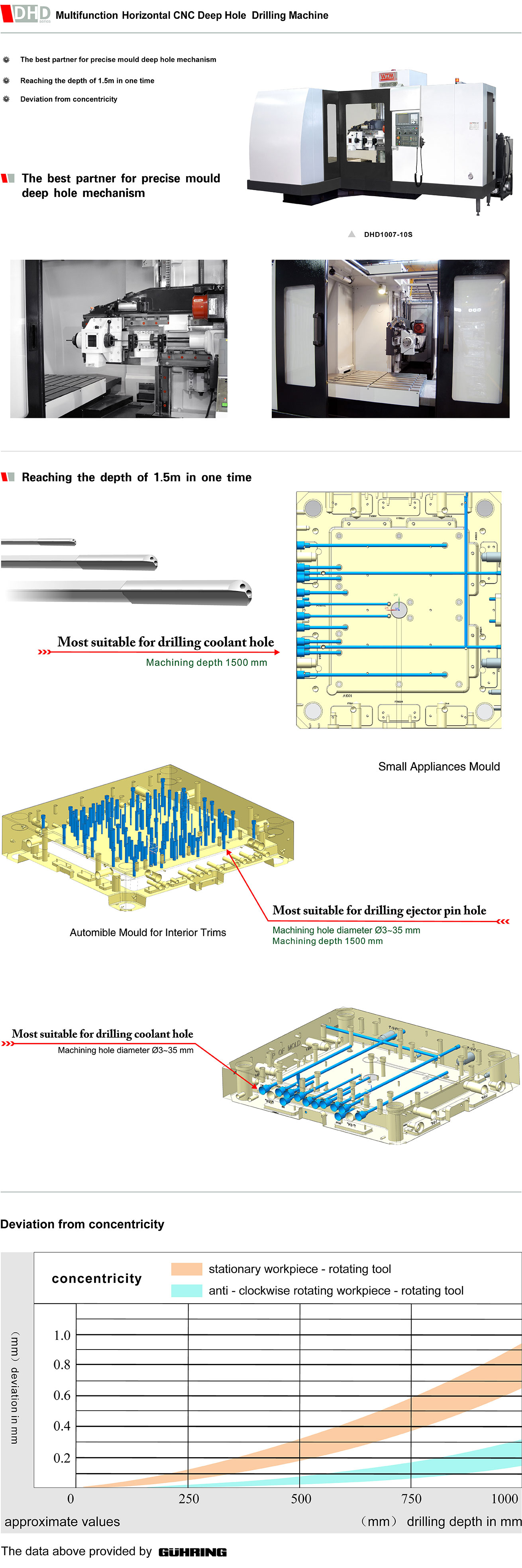

Advantages

Specifications

  • Parameter
  • Diagram
  • Floor Plan

  Model Unit DHD1007SDHD1512-15SDHD2012-15S DHD2515-15SDHD3015-15S
Drilling capacityMachining hole diameter mm 3 to 303 to 35 3 to 35 3 to 353 to 35
Machining depth mm 1000 1500 15001500 1500
TravelTable horizontal (X) mm 1000 1500 2000 2500  3000
Main spindle vertical (Y)mm 700  1200  1200 1500  1500
SpeedMax. spindle speed rpm 6000  6000   6000   6000   6000
Feed speed mm/min 0 to 3000 0 to 30000 to 3000  0 to 30000 to 3000
PowerSpindle motor kW7.57.5 7.57.57.5
X axis servo motor N.m202030 3038
Y axis servo motor N.m2020 3030 30
Z axis servo motor N.m7121212 12
Total power requirement kW2235 4646 47
WorktableMax. loading capacityton3 61012  15
 Sizemm1100x8001700x1200 2200x12002700x1200 2700x1200
Coolant systemCoolant pressure MPa2 to 112 to 112 to 11 2 to 11 2 to 11
 Rate of flowL/min6 to 80 6 to 1106 to 110 6 to 1106 to 110
Size and weightFloor space required mm4800x3500 6060x4900 6380x5900  6380x6900 6380x7400
Machine height mm26403560 35603860 3860
Machine weight ton912 1822 24
CNC system- -FANUC 0i-MFFANUC 0i-MF FANUC 0i-MFFANUC 0i-MFFANUC 0i-MF

 Design & specifications are subject to change without prior notice!

Accessories

  • Standard Accessories
  • Optional Accessories

 DHD1007SDHD1512-15SDHD2012-15SDHD2515-15SDHD3015-15S
Full guard
Lubricating system
Coolant system
Pneumatic system
Leveling screws and leveling wedges
Whip guide set
Magnetic chip conveyor
Cycle indicator lamp
Heat exchanger for electric cabinet
Chiller
FANUC 0i-MF system

 Design & specifications are subject to change without prior notice!

 DHD1007SDHD1512-15SDHD2012-15SDHD2515-15SDHD3015-15S
CNC indexing worktable
Manual indexing worktable
Gun drill regrinder
Gun drill regrinding fixture
90° Angle plate
Chip/oil separator
Auxiliary spindle for multi-purpose
Upgrade ram to numerical control axis

 Design & specifications are subject to change without prior notice!
